zencontrol DALI-2 Wired and Wireless Field relay 16A
zencontrol DALI-2 Wired and Wireless Field relay 16A
Couldn't load pickup availability
-
For use with DALI control system
-
Compatible with DALI and DALI-2
-
Supports IEC 62386-104 over Thread®
- Large pass through terminal blocks for easy wiring
-
Protected against DALI over voltage
-
Mains rated 240v relay output
-

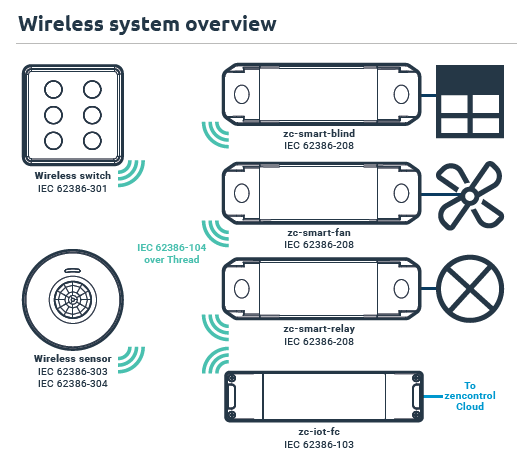

Converts DALI ECGs and ECDs to a wireless system
-
Compliant to IEC 62386-208
-
DALI device type 7
zencontrol connect
Introducing zencontrol connect—your gateway to effortless control and smart building management. Easily pair smart devices either wirelessly or via DALI to create an intelligent ecosystem. With zencontrol connect, you gain unparalleled control over both wireless and DALI lighting, allowing you to fine-tune light levels, set timeouts, and activate advanced features like corridor hold. Customise your network with a versatile range of smart devices, including switches, sensors, relays, and more.
Specification
| Supply Voltage | 240 V ~ 50 Hz |
| Control system | Wired DALI-2 Wireless IEC62386-104 over Thread |
| Radio Support | IEEE 802.15.4 |
| Frequency band | 2.4 GHz |
| Max radio tx power | +8 dBm |
| DALI line current | 2 mA |
| Output load |
16A resistive 8A inductive |
| Output type | Switched Active 240 V~ |
| Max. in-rush |
165 A / 20ms 492 A / 1.5ms |
| Min. rated relay operations | 12 000 |
| Contact rating | 100mΩ max. (at 1A 6V dc) |
| Max. operations per hour | 360 |
| Relay type | Non-latching normally open |

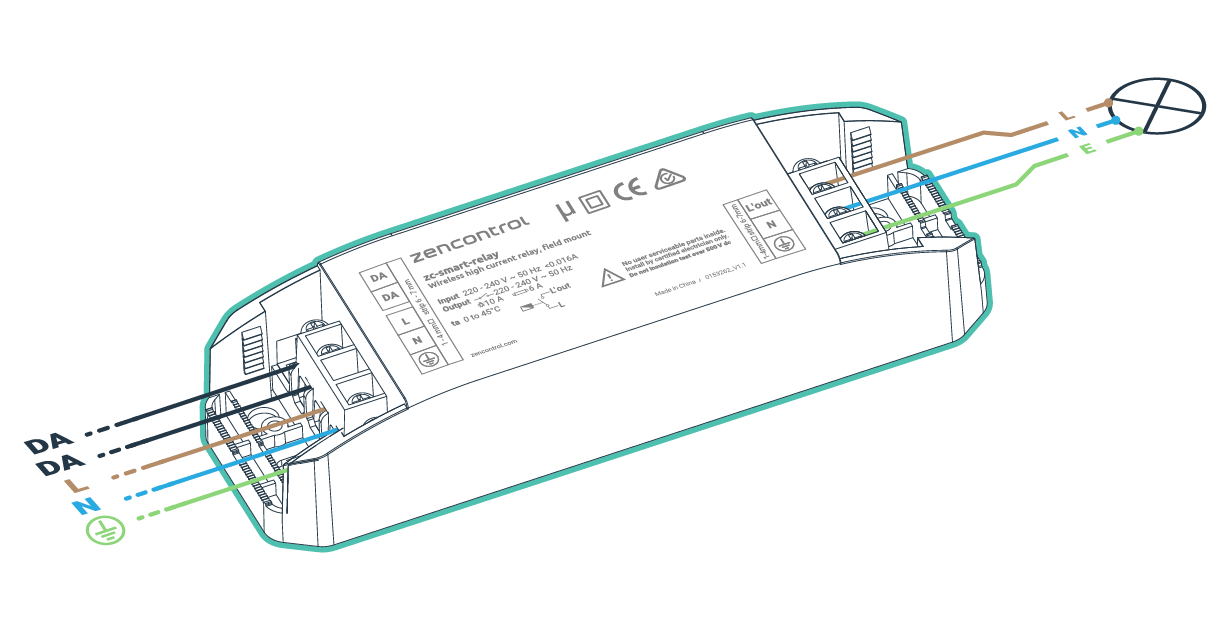

| Wiring |
1-4 mm2 Strip 6-7mm |
| Operating temperature | 0 to 55°C |
| Material | PC |
| Classification | Class II |

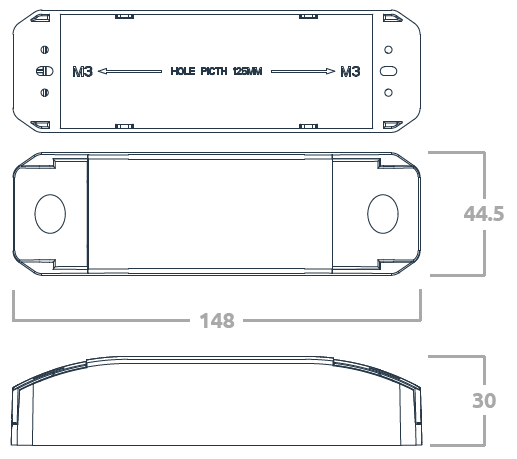

| Mounting | Independently mounted control for surface mounting |
| Ingress protection | IP20 |
| Compliance standards |
IEC 60669-2-1, IEC 60950-1 IEC 62386-104, IEC 62386-208 EN 55015, EN 55022, CISPR 15 |
