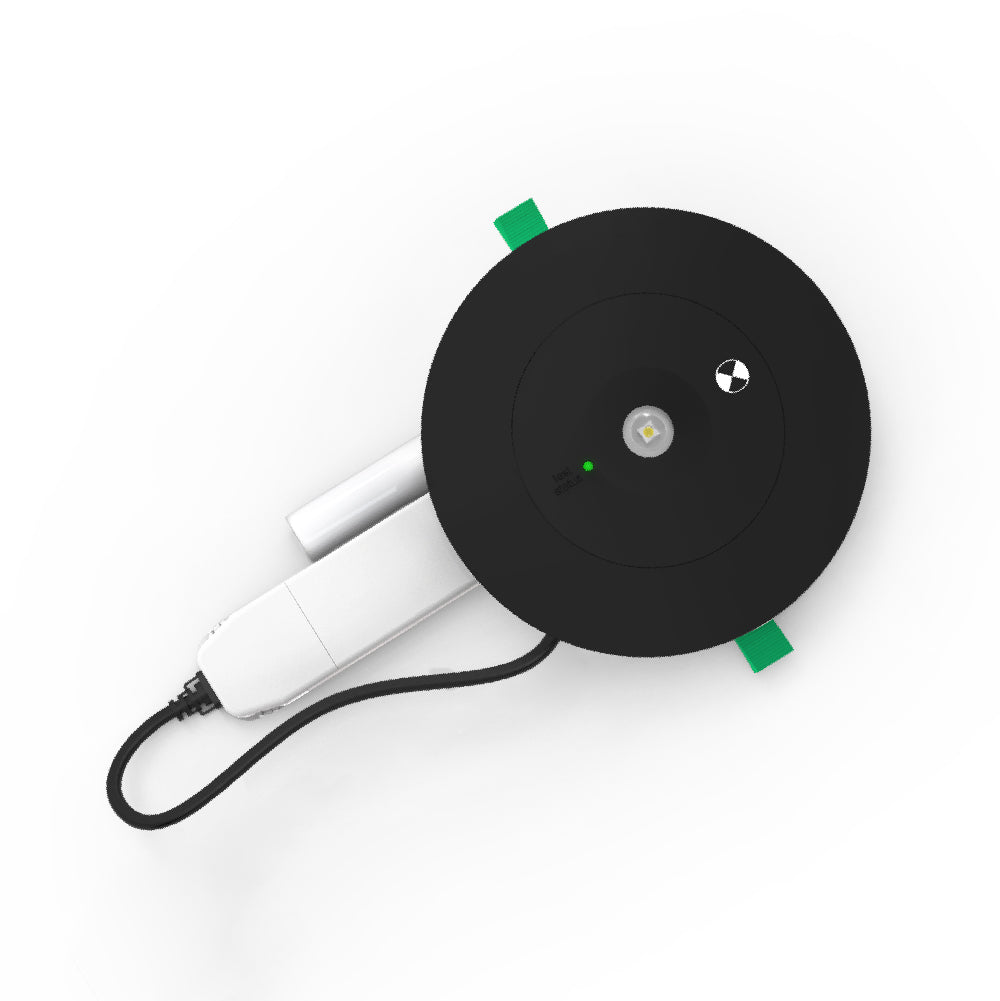

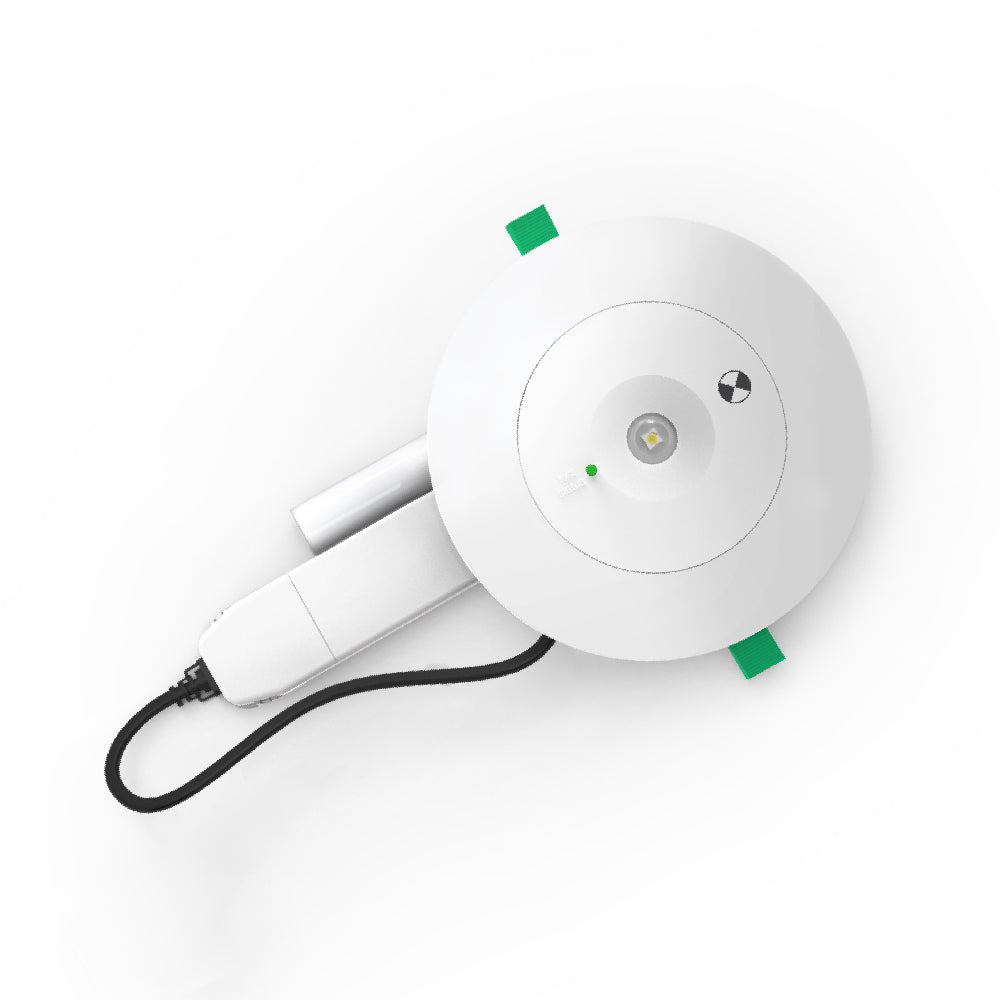

Ektor Ledfire Advanced Emergency Luminaire DALI D63 - w/Flex & Plug

Ektor Ledfire Advanced Emergency Luminaire DALI D63 - w/Flex & Plug

$216.67 AUD
$216.67 AUD
Sale Sold out
Color

Advanced Emergency Luminaire D63

  • Non-maintained operation
  • Soft-start charger to reduce building load
  • Lowest energy consumption (avg. <0.25W)
  • Selectable discharge rating for hazardous areas
  • Fast emergency switch-over (<0.5s) for high-task areas

Selected Models

  • Long life electronics
  • 8 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
  • DALI (IEC62386)
  • Ektor wired monitored system
  • Wireless monitoring via Ektor Lynk
  • Wireless meshing system

MECHANICAL

Body Material Polycarbonate
Fitting Colour White/Black
Installation Type Recessed
IP Rating IP44 Front Face Only

ELECTRICAL

Electrical Rating Class II
Input Frequency 50 Hz
Input voltage 230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage 2.5 W
Standby Power 0.25 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range 0 to 40 °C

EMERGENCY (EM SUFFIX)

Replacement Battery Code 01303
Emergency Classification C0:D63, C90:D63
Emergency Control DALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Emergency Duration 90 mins
Emergency Lumen Output 330 lm
Emergency Mode Non-Maintained
Emergency Output Power 2100 mW

DRIVER

Dimmable No
Driver Included Yes
Driver Type DALI DT1 Emergency
Flex & Plug or Lead Length 1200 mm
Wiring Type Re-wireable Flex & Plug (2 pin)

COMPLIANCE

Product Design Life 8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

WARRANTY

Commercial Use Warranty 6 RTB (Total 6 Years)
