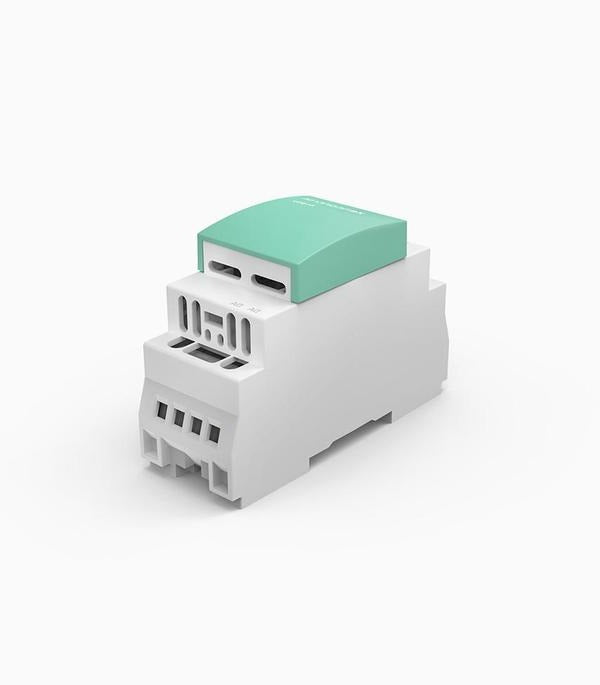

zencontrol DALI-2 Power Supply 250mA

zencontrol DALI-2 Power Supply 250mA

$143.22 AUD
$143.22 AUD
Sale Sold out

Product range

Order code Description
zc-psu 250mA DALI-2 power supply, DIN rail mount

Features

General

  • Suitable for one DALI line/ DALI Universe
  • 235 mA DALI line current, guaranteed
  • Compatible with all DALI systems
  • DALI-2 compliant power supply
  • Protected against short circuit and DALI over voltage
  • Tested and compliant to IEC 62386-101 Ed 2.0
  • Advanced bus power supply, as defined by IEC 62386-101 Ed 2.0
  • Suitable for distribution board mounting on standard 35 mm DIN rail

Resources

Instructions
DALI-2 compliance

Dimensions (mm)

Specifications
Supply voltage 230 V ~ 50 Hz
Control system DALI
Guaranteed supply current 235 mA
Maximum supply current 250 mA
DALI voltage 16.5 V nominal line voltage
Wiring 1-4 mm2
Strip 6-7 mm
Operating temperature 0 to 45°C
Material PC
Classification Class II
Mounting DIN rail (35mm)
Ingress protection IP20
Compliance standards IEC 61347-2-11
IEC 62386-101 Ed 2.0
CISPR 15
EN 55015
EMC-2004/108/EC
LVD-2006/95/EC
