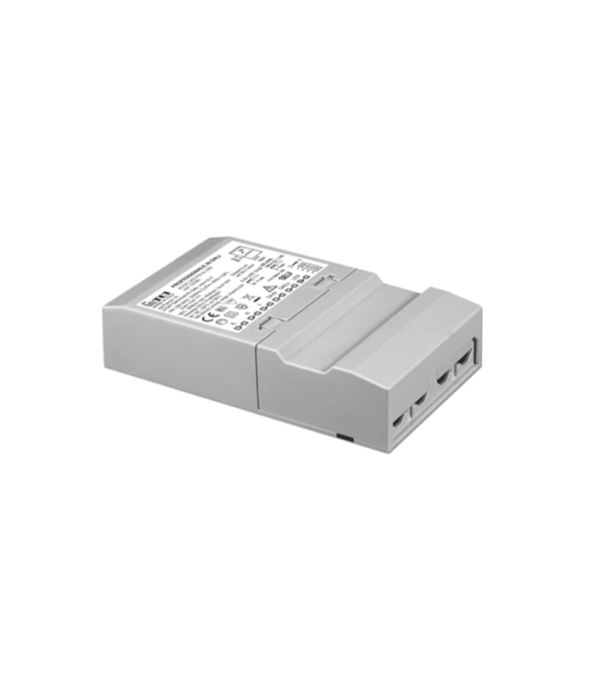

DALI-2 Professional Constant Current 300-1050mA LED Driver
DALI-2 Professional Constant Current 300-1050mA LED Driver
Couldn't load pickup availability
A 240V dip-switch settable constant current DALI-2 driver.
Ideal for converting LED panels, troffer lights, or larger-style LED downlights into DALI-2 controllable lights, ensuring smooth and flicker-free dimming.
DIP Switch Selectable Options (mA)
| 300 mA | 500 mA | 700 mA | 900 mA |
| 350 mA | 550 mA | 750 mA | 950 mA |
| 400 mA | 600 mA | 800 mA | 1000 mA |
| 450 mA | 650 mA | 850 mA | 1050 mA |
Current - 300 mA 220-240 V = Output power - 16.2 W
Current - 350 mA 220-240 V = Output power - 19 W
Current - 400 mA 220-240 V = Output power - 21.6 W
Current - 450 mA 220-240 V = Output power - 24.3 W
Current - 500 mA 220-240 V = Output power - 27 W
Current - 550 mA 220-240 V = Output power - 29.7 W
Current - 600 mA 220-240 V = Output power - 32.4 W
Current - 650 mA 220-240 V = Output power - 35.1 W
Current - 700 mA 220-240 V = Output power - 37.8 W
Current - 750 mA 220-240 V = Output power - 40 W
Current - 800 mA 220-240 V = Output power - 40 W
Current - 850 mA 220-240 V = Output power - 40 W
Current - 900 mA 220-240 V = Output power - 40 W
Current - 950 mA 220-240 V = Output power - 40 W
Current - 1000 mA 220-240 V = Output power - 40 W
Current - 1050 mA 220-240 V = Output power - 40 W
Features
| Dimming | DALI-1, DALI-2 |
| Additional Technical Features | Ripple Free, Active PFC (pf>0.9), SELV, Dimming: Amplitude (AM), IEEE1789-2015 - Dim-to-Warm |
| Approvals | KEMAKEUR, ENEC, RCM, CE, EAC |
| Casing | IP 20 |
| Minimum cut-out | 85 mm |
| Size | 132 x 79 x 30 mm |
