TCI

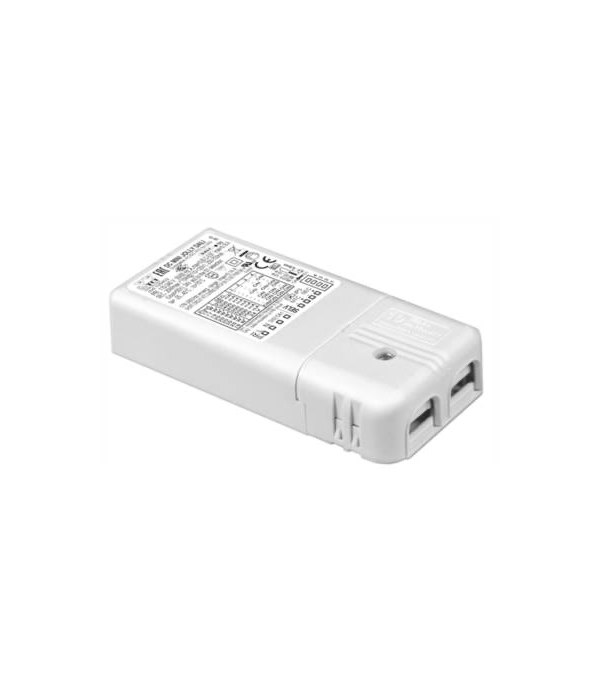

DALI-2 Constant Current 250-700mA LED Driver
DALI-2 Constant Current 250-700mA LED Driver
Regular price
$59.47 AUD
Regular price
Sale price
$59.47 AUD
Unit price
per
Couldn't load pickup availability
A 240V dip-switch settable constant current DALI-2 driver.
Ideal for converting LED downlights and smaller LED panel lights into DALI-2 controllable lights, ensuring smooth and flicker-free dimming.
DIP Switch Selectable Options (mA)
| 250 mA | 400 mA | 500 mA | 600 mA |
| 350 mA | 450 mA | 550 mA | 700 mA |
Current - 250 mA 220-240 V = Output power - 12 W
Current - 350 mA 220-240 V = Output power - 17 W
Current - 400 mA 220-240 V = Output power - 19 W
Current - 450 mA 220-240 V = Output power - 20 W
Current - 500 mA 220-240 V = Output power - 20 W
Current - 550 mA 220-240 V = Output power - 20 W
Current - 600 mA 220-240 V = Output power - 20 W
Current - 700 mA 220-240 V = Output power - 20 W
Features
| Dimming | DALI-1, DALI-2 |
| Additional Technical Features | Ripple Free, Active PFC (pf>0.9), SELV, Dimming: Amplitude (AM), IEEE1789-2015 - Dim-to-Warm |
| Approvals | KEMAKEUR, ENEC, UL, CCC, RCM, CE, EAC, IRAM |
| Casing | IP 20 |
| Minimum cut-out | 55 mm |

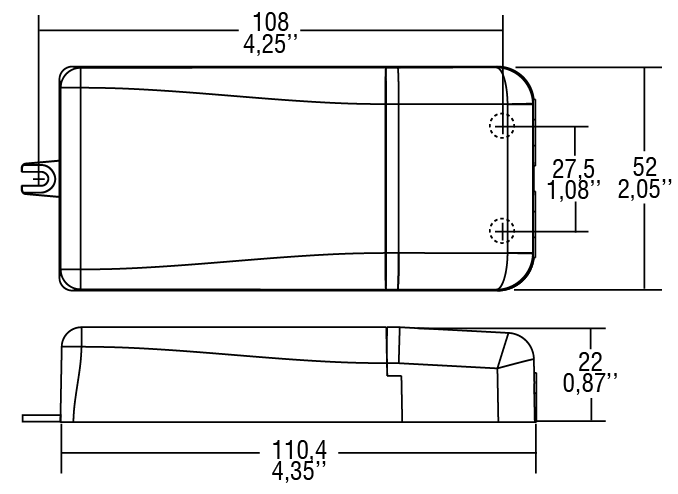

| Size | 111 x 22 x 52 mm |
